Name：2DZ45T-10

Details

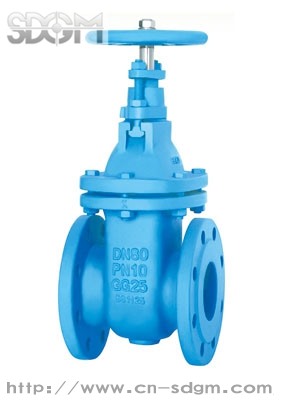

FLANGE END NON-RISING STEM GATE VALVE

Scope of Application：

SIZE		40-150	200-300	350-400
NORMINAL PRESSURE		1.0MPa	0.6MPa	0.4MPa
TEST PRESSURE	intensity	1.5MPa	0.9MPa	0.6MPa
TEST PRESSURE	sealed	1.1MPa	0.66MPa	0.44MPa
SUITABLE MEDIUM		WATER

Technical requirement

Design, manufacture conforms to DIN 3352.
Face to face dimension conforms to Series 14 of BS EN 558-1.
Flange drilled conforms to BS EN 1092。

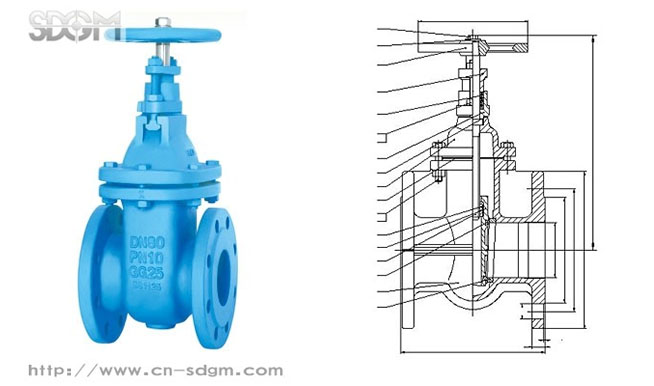

DNL	L	D	D1	D2	B	f	n-d	Do	H
40	140	150	110	84	18	3	4-19	160	271
50	150	165	125	99	20	3	4-19	160	291
65	170	185	145	118	20	3	4-19	160	321
80	180	200	160	132	22	3	8-19	160	360
100	190	220	180	156	24	3	8-19	200	378
125	200	250	210	184	26	3	8-19	250	451
150	210	285	240	211	26	3	8-23	250	489
200	230	340	295	266	26	3	8-23	250	573
250	250	395	350	319	28	3	12-23	320	708
300	270	445	400	370	28	4	12-23	320	764
350	290	505	460	429	26	4	16-23	400	870
400	310	565	515	480	28	4	16-28	400	940

19	nut	steel	DIN17100 RSt37-2	GB700-88 Q235
18	washer	steel	DIN17100 RSt37-2	GB700-88 Q235
17	handwheel	cast iron	DIN1691 GG25	GB9439-88 HT250
16	nut	steel	DIN17100 RSt37-2	GB700-88 Q235
15	gland follower	cast iron	DIN1691 GG25	GB9439-88 HT250
14	packing	graphite		GB3518-83 LC35-999
13	stuffing box	cast iron	DIN1691 GG25	GB9439-88 HT250
12	gasket	graphite		GB3518-83 LC35-999
11	T-bolt	steel	DIN17100 RSt37-2	GB700-88 Q235
10	Bonnet	cast iron	DIN1691 GG25	GB9439-88 HT250
9	gasket	graphite		GB3518-83 LC35-999
8	nut	steel	DIN17100 RSt37-2	GB700-88 Q235
7	bolt	steel	DIN17100 RSt37-2	GB700-88 Q235
6	stem	steel	DIN17440 X20Cr13	GB1220-92 2Cr13
5	stem nut	cast brass		GB1176-87 ZCuZn38Mn2Pb2
4	wedge	cast iron	DIN1691 GG25	GB9439-88 HT250
3	wedge sealed ring	cast brass	DIN17656 G-CuZn37Pb	GB1176-87 ZCuZn40Pb2
2	body sealed ring	cast brass	DIN17656 G-CuZn37Pb	GB1176-87 ZCuZn40Pb2
1	body	cast iron	DIN1691 GG25	GB9439-88 HT250
NO.	name of part	material	Germany Standard	Chinese Standard
