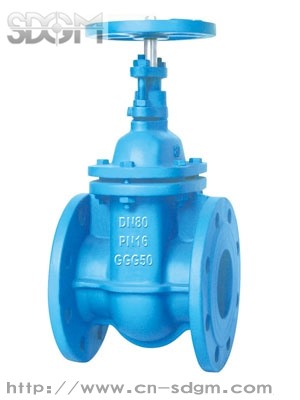

FLANGE END RISING STEM GATE VALVE
Scope Of Application:
|
Norminal pressure
|
1.6MPa
|
|
suitable medium
|
water, oil, steam
|
|
testing pressure
|
shell
|
2.4MPa
|
|
seat
|
1.76MPa
|
|
testing time
|
60s
|
|
working pressure
|
120°c
|
1.6MPa
|
Technical Application:
-
Design, manufacture conforms to DIN 3352
-
Face to face dimension conforms to series 14 of BS EN 558-1.
-
Flange drilled conform BS EN1092.
|
DN
|
L
|
D
|
D1
|
D2
|
B
|
f
|
n-d
|
Do
|
H
|
|
40
|
140
|
150
|
110
|
80
|
16
|
2
|
4-19
|
160
|
244/295
|
|
50
|
150
|
165
|
125
|
102
|
16
|
2
|
4-19
|
160
|
254/315
|
|
65
|
170
|
185
|
145
|
124
|
16
|
2
|
4-19
|
160
|
294/371
|
|
80
|
180
|
200
|
160
|
140
|
17
|
2
|
8-19
|
160
|
331/424
|
|
100
|
190
|
220
|
180
|
158
|
17
|
2
|
8-19
|
200
|
385/500
|
|
125
|
200
|
250
|
210
|
188
|
18
|
3
|
8-19
|
200
|
457/598
|
|
150
|
210
|
285
|
240
|
212
|
20
|
3
|
8-23
|
250
|
545/711
|
|
200
|
230
|
340
|
295
|
268
|
21
|
3
|
12-23
|
250
|
683/901
|
|
250
|
250
|
405
|
355
|
320
|
23
|
3
|
12-28
|
320
|
823/1093
|
|
300
|
270
|
460
|
410
|
378
|
24
|
4
|
12-28
|
320
|
952/1273
|
|
17
|
handwheel nut
|
ductile iron
|
DIN1693 GGG50
|
GB1348-88 QT500-7
|
|
16
|
handwheel
|
cast iron
|
DIN1691 GG25
|
GB9439-88 HT250
|
|
15
|
handwheel gasket
|
cast brass
|
DIN1705 G-CuSn5ZnPb
|
GB1176-87 ZCuSn5Pb5Zn5
|
|
14
|
stem nut
|
cast brass
|
|
GB1176-87 ZCuZn38Mn2Pb2
|
|
13
|
bolt
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
12
|
nut
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
11
|
gland follower
|
ductile iron
|
DIN1693 GGG50
|
GB1348-88 QT500-7
|
|
10
|
packing
|
graphite
|
|
GB3518-83 LC35-999
|
|
9
|
bonnet
|
ductile iron
|
DIN1693 GGG50
|
GB1348-88 QT500-7
|
|
8
|
flange gasket
|
graphite
|
|
GB3518-83 LC35-999
|
|
7
|
nut
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
6
|
bolt
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
5
|
stem
|
stainless steel
|
DIN17440 X20Cr13
|
GB1220-92 2Cr13
|
|
4
|
wedge seat ring
|
cast brass
|
DIN17656 G-CuZn37Pb
|
GB1176-87 ZCuZn40Pb2
|
|
3
|
wedge
|
ductile iron
|
DIN1693 GGG50
|
GB1348-88 QT500-7
|
|
2
|
body seat ring
|
cast brass
|
DIN17656 G-CuZn37Pb
|
GB1176-87 ZCuZn40Pb2
|
|
1
|
body
|
ductile iron
|
DIN1693 GGG50
|
GB1348-88 QT500-7
|
|
NO.
|
Name of part
|
material
|
Germany standard
|
Chinese standard
|
