Name：1DZ45T-16

Details

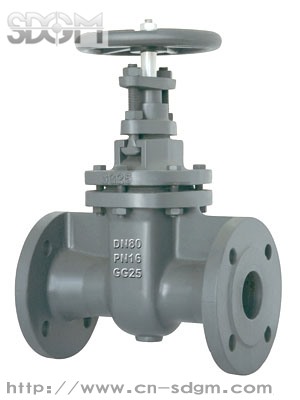

FLANGE END NON-RISING STEM GATE VALVE

Scope of Application

NORMINAL PRESSURE		1.6MPa
SUITABLE MEDIUM		WATER, OIL,STEAM
TEST PRESSURE	intensity	2.4MPa
	sealed	1.76MPa
Highest temperature		-10—150°C

Technical requirement

Design, manufacture conforms to DIN 3352.
Face to face dimension conforms to Series 15 of BS EN 558-1.
Flange drilled conforms to BS EN 1092。

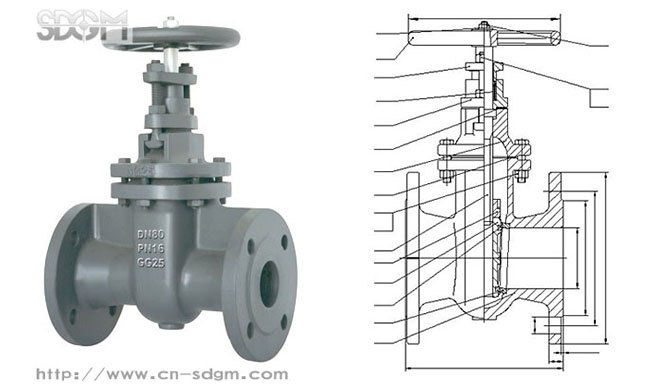

DN	L	D	D1	D2	DO	B	f	n-d
40	240	150	110	88	160	18	3	4-19
50	250	165	125	102	160	20	3	4-19
65	270	185	145	122	160	20	3	4-19
80	280	200	160	138	160	22	3	8-19
100	300	220	180	158	200	24	3	8-19
125	325	250	210	188	250	26	3	8-19
150	350	285	240	212	250	26	3	8-23
200	400	340	295	268	250	30	3	12-23
250	450	405	355	320	320	32	3	12-28
300	500	460	410	378	320	32	4	12-28
350	550	520	470	438	400	36	4	16-28
400	600	580	525	490	400	36	4	16-31

19	nut	steel	DIN17100 RSt37-2	GB700-88 Q235
18	washer	steel	DIN17100 RSt37-2	GB700-88 Q235
17	handwheel	cast iron	DIN1691 GG25	GB9439-88 HT250
16	nut	steel	DIN17100 RSt37-2	GB700-88 Q235
15	gland follower	cast iron	DIN1691 GG25	GB9439-88 HT250
14	packing	graphite		GB3518-83 LC35-999
13	stuffing box	cast iron	DIN1691 GG25	GB9439-88 HT250
12	gasket	graphite		GB3518-83 LC35-999
11	T-bolt	steel	DIN17100 RSt37-2	GB700-88 Q235
10	bonnet	cast iron	DIN1691 GG25	GB9439-88 HT250
9	gasket	graphite		GB3518-83 LC35-999
8	nut	steel	DIN17100 RSt37-2	GB700-88 Q235
7	bolt	steel	DIN17100 RSt37-2	GB700-88 Q235
6	stem	steel	DIN17440 X20Cr13	GB1220-92 2Cr13
5	stem nut	cast brass		GB1176-87 ZCuZn38Mn2Pb2
4	wedge	cast iron	DIN1691 GG25	GB9439-88 HT250
3	wedge seat ring	cast brass	DIN17656 G-CuZn37Pb	GB1176-87 ZCuZn40Pb2
2	body seat ring	cast brass	DIN17656 G-CuZn37Pb	GB1176-87 ZCuZn40Pb2
1	body	cast iron	DIN1691 GG25	GB9439-88 HT250
NO.	name of part	material	German Standard	Chinese Standard
