J45HF-16-Shandong General Machinery Import & Export Co., Lt

Name：J45HF-16

Details

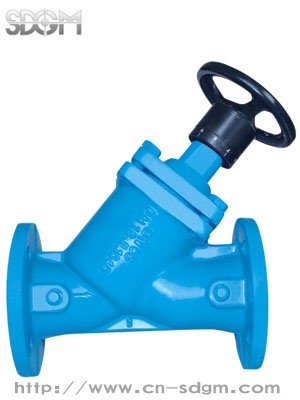

FLANGE END Y-GLOBE VALVE

Scope Of Applicant:

Normnal pressure		1 . 6 M P a
suitable medium		water
pressure	shell	2 . 4 M P a
	seat	1 . 7 6 M P a

Technical Requirement:
1.Design,manufacture conforms to DIN 3356.
2.Face to face dimension conform to Series 1 of BS EN 558-1.
3.Flange drilled conforms to BS EN1092-2.

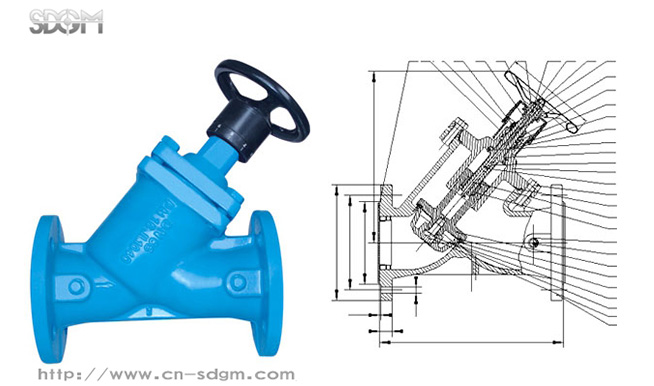

DN	L	D	D1	D2	Do	B	f	n-d	H
50	230	165	125	102	140	20	3	4-19	242
65	290	185	145	122	140	20	3	4-19	257
80	210	200	160	138	175	22	3	8-19	295
100	350	220	180	158	175	24	3	8-19	327
125	400	250	210	188	250	26	3	8-19	415
150	480	285	240	212	250	26	3	8-23	485
200	600	340	295	268	300	30	3	12-23	585
250	730	405	355	320	350	32	3	12-28	658
300	850	460	410	378	350	32	4	12-28	726

34	cap	plastic
33	indication-cover of scale	ABS	ISO 2580	ISO 2580
32	indication-adjusting for zero	ABS	ISO 2580	ISO 2580
31	screw	steel	DIN C30	GB699-88 30
30	washer for eddying cover	brass	DIN17660 Cu-Zn39Pb2	YB146-71 HPb59-1
29	indication-eddying cover	ABS	ISO 2580	ISO 2580
28	handwheel	steel	DIN C10	GB699-88 10
27	washer	brass	DIN17660 Cu-Zn39Pb2	YB146-71 HPb59-1
26	bolt cover	plastic
25	bolt	steel	DIN17100 RSt37-2	GB700-88 Q235
24	orientation	brass	DIN17660 Cu-Zn39Pb2	YB146-71 HPb59-1
23	adjusting bolt	steel	DIN17100 RSt37-2	GB700-88 Q235
22	washer	steel	DIN 65Mn4	GB699-88 65Mn
21	stem bush	cast brass	DIN17656 G-CuZn37Pb	GB1176-87 ZCuZn40Pb2
20	O-ring	NBR	NBR	NBR
19	O-ring	NBR	NBR	NBR
18	bonnet bush	cast brass	DIN17656 G-CuZn37Pb	GB1176-87 ZCuZn40Pb2
17	washer	brass	DIN17660 Cu-Zn39Pb2	YB146-71 HPb59-1
16	stem	brass	DIN17660 Cu-Zn39Pb2	YB146-71 HPb59-1
15	bonnet	cast iron	DIN1691 GG25	GB9439-88 HT250
14	O-ring	NBR	NBR	NBR
13	bolt	steel	DIN17100 RSt37-2	GB700-88 Q235
12	body gasket	graphite	Non-Asbestos	GB3518-83 LC35-999
11	adjusting stem	brass	DIN17660 Cu-Zn39Pb2	YB146-71 HPb59-1
10	stem nut	brass	DIN17660 Cu-Zn39Pb2	YB146-71 HPb59-1
9	washer	Asbestos	Asbestos	GB3985-95 XB200
8	stud	steel	DIN17100 RSt37-2	GB700-88 Q235
7	disc	cast iron	DIN1691 GG25	GB9439-88 HT250
6	disc seat ring	teflon	TEFLON	HG/T2902
5	body seat ring	stainless steel	DIN17440 X20Cr13	GB1220-92 2Cr13
4	disc cover	cast iron	DIN1691 GG25	GB9439-88 HT250
3	disc washer	brass	DIN17660 Cu-Zn39Pb2	YB146-71 HPb59-1
2	screw	steel	DIN C30	GB699-88 30
1	body	cast iron	DIN1691 GG25	GB9439-88 HT250
NO.	Name of part	Material	Germany standard	Chinese standard
