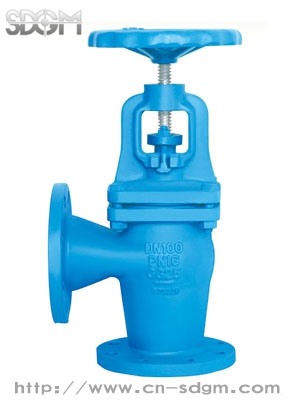

FLANGE END ANGLE PATTERN GLOBE VALVE
Scope Of Application:
|
Norminal pressure
|
1.6MPa
|
|
Suitable medium
|
Water
|
|
test pressure
|
shell
|
2.4MPa
|
|
seat
|
1.76MPa
|
Technical Requirement:
-
Design,manufacture conforms to DIN 3356.
-
Face to face dimension conforms to Series 8 of BS EN 558-1.
-
Flange drilled conforms to BS EN1092.
|
SIZE
|
L
|
D
|
D1
|
D2
|
B
|
f
|
n-d
|
Do
|
|
15
|
90
|
95
|
65
|
46
|
14
|
2
|
4-14
|
100
|
|
20
|
95
|
105
|
75
|
56
|
16
|
2
|
4-14
|
100
|
|
25
|
100
|
115
|
85
|
65
|
16
|
3
|
4-14
|
120
|
|
32
|
105
|
140
|
100
|
76
|
18
|
3
|
4-19
|
120
|
|
40
|
115
|
150
|
110
|
84
|
18
|
3
|
4-19
|
140
|
|
50
|
125
|
165
|
125
|
99
|
20
|
3
|
4-19
|
140
|
|
65
|
145
|
185
|
145
|
118
|
20
|
3
|
4-19
|
200
|
|
80
|
155
|
200
|
160
|
132
|
22
|
3
|
8-19
|
200
|
|
100
|
175
|
220
|
180
|
156
|
24
|
3
|
8-19
|
240
|
|
125
|
200
|
250
|
210
|
184
|
26
|
3
|
8-19
|
280
|
|
150
|
225
|
285
|
240
|
211
|
26
|
3
|
8-23
|
315
|
|
200
|
275
|
340
|
295
|
266
|
30
|
3
|
12-23
|
360
|
|
250
|
325
|
405
|
355
|
319
|
32
|
3
|
12-28
|
400
|
|
300
|
375
|
460
|
410
|
370
|
32
|
4
|
12-28
|
400
|
|
20
|
T-bolt
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
19
|
nut
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
18
|
screw
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
17
|
handwheel
|
cast iron
|
DIN1691 GG25
|
GB9439-88 HT250
|
|
16
|
washer
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
15
|
nut
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
14
|
stem nut
|
cast brass
|
|
GB1176-87 ZCuZn38Mn2Pb2
|
|
13
|
stem
|
stainless steel
|
DIN17440 X20Cr13
|
GB1220 2Cr13
|
|
12
|
gland follower
|
ductile iron
|
DIN1693 GGG50
|
GB1348-88 QT500-7
|
|
11
|
packing
|
graphite
|
|
GB3518-83 LC35-999
|
|
10
|
bonnet
|
cast iron
|
DIN1691 GG25
|
GB9439-88 HT250
|
|
9
|
nut
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
8
|
bolt
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
7
|
gasket
|
graphite
|
|
GB3518-83 LC35-999
|
|
6
|
screw
|
steel
|
DIN17100 RSt37-2
|
GB700-88 Q235
|
|
5
|
steel ball
|
steel
|
DIN17230 100Cr6
|
GB/T18254 GCr15
|
|
4
|
disc
|
cast iron
|
DIN1691 GG25
|
GB9439-88 HT250
|
|
3
|
disc seat ring
|
stainless steel
|
DIN17440 X20Cr13
|
GB1220-92 2Cr13
|
|
2
|
body seat ring
|
stainless steel
|
DIN17440 X20Cr13
|
GB1220-92 2Cr13
|
|
1
|
body
|
cast iron
|
DIN1691 GG25
|
GB9439-88 HT250
|
|
NO.
|
Name of part
|
material
|
Germany standard
|
Chinese standard
|
